NGK STANDARD SPARK PLUG 3194 - BR9ES-SOLID

ngkNGK's Standard Plugs are Constructed for Longer Life and Optimum Performance.

Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties

Corrugated Ribs Prevent Flashover

Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer

Copper Core Aids in Heat Removal

Triple Seals Prevent Leakage

Sold individually

FEATURES

Solid Terminal

Corrugated Ribs

Triple-Gasket Sealing Process

Copper Core

SHELL

Thread Size: 14mm

Thread Pitch: 1.25mm

Seat Type: Gasket

Resistor: Yes

Resistor Value: 5K Ohm

Reach: 19mm (3/4")

Hex Size: 13/16" (21mm)

Terminal Type: Solid

Overall Height: ISO

Gap:. 031" (0.8mm)

Center Electrode

MATERIAL: Nickel

Type: Standard

Size: 2.5mm

PROJECTION: Non-Projected

Ground Electrode

Material: Nickel

Type: Standard

Specifications

Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

Brand: NGK

Heat Range: 9

Longevity: 30k

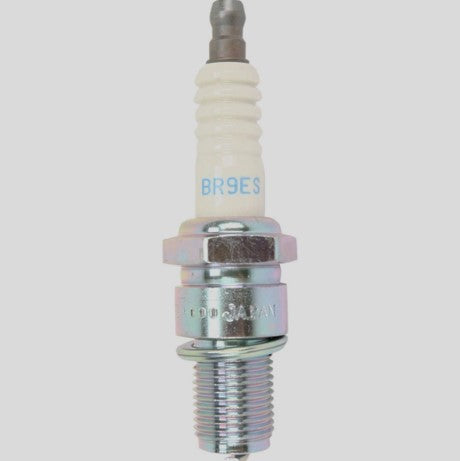

Picture for illustration purposes only. Actual product may vary
